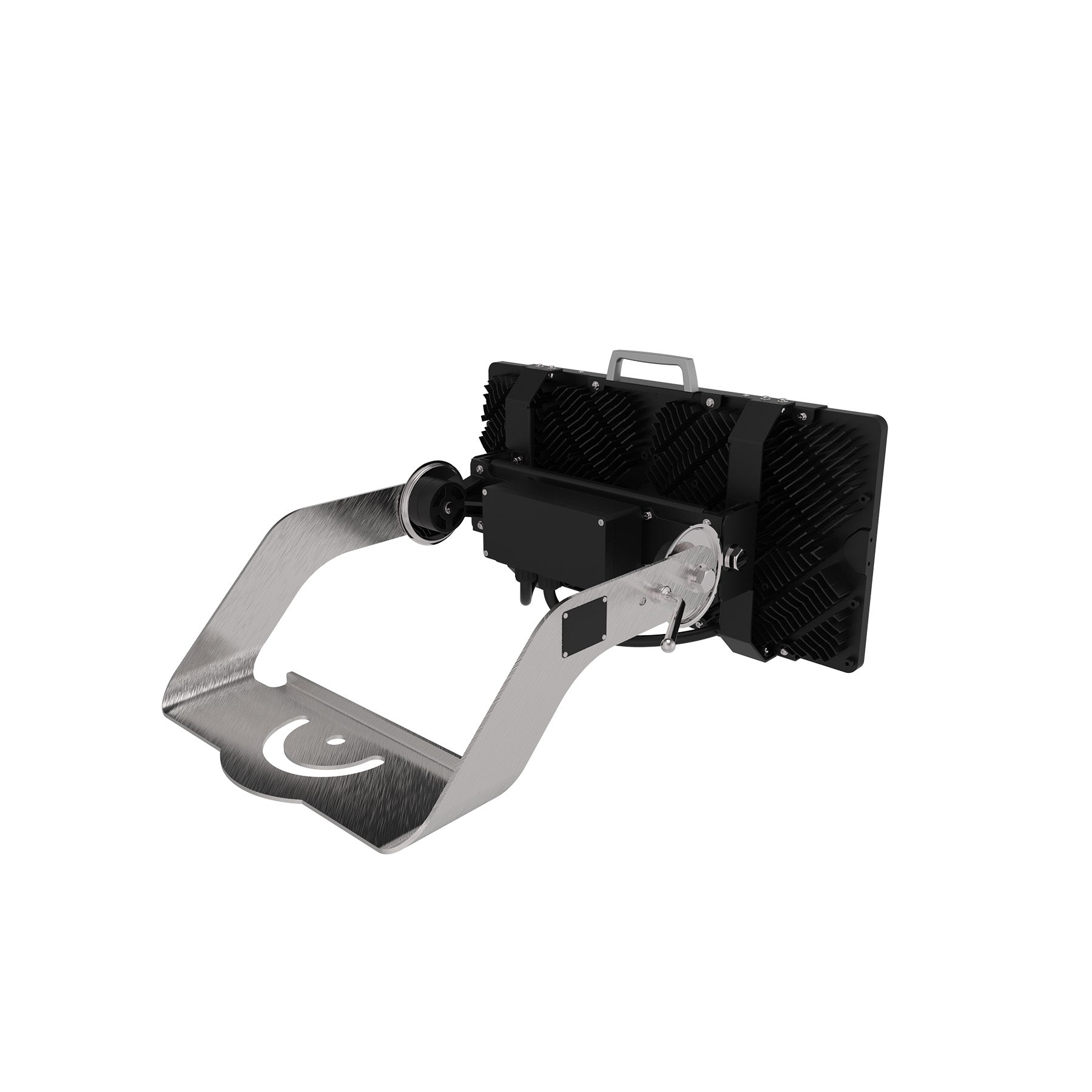

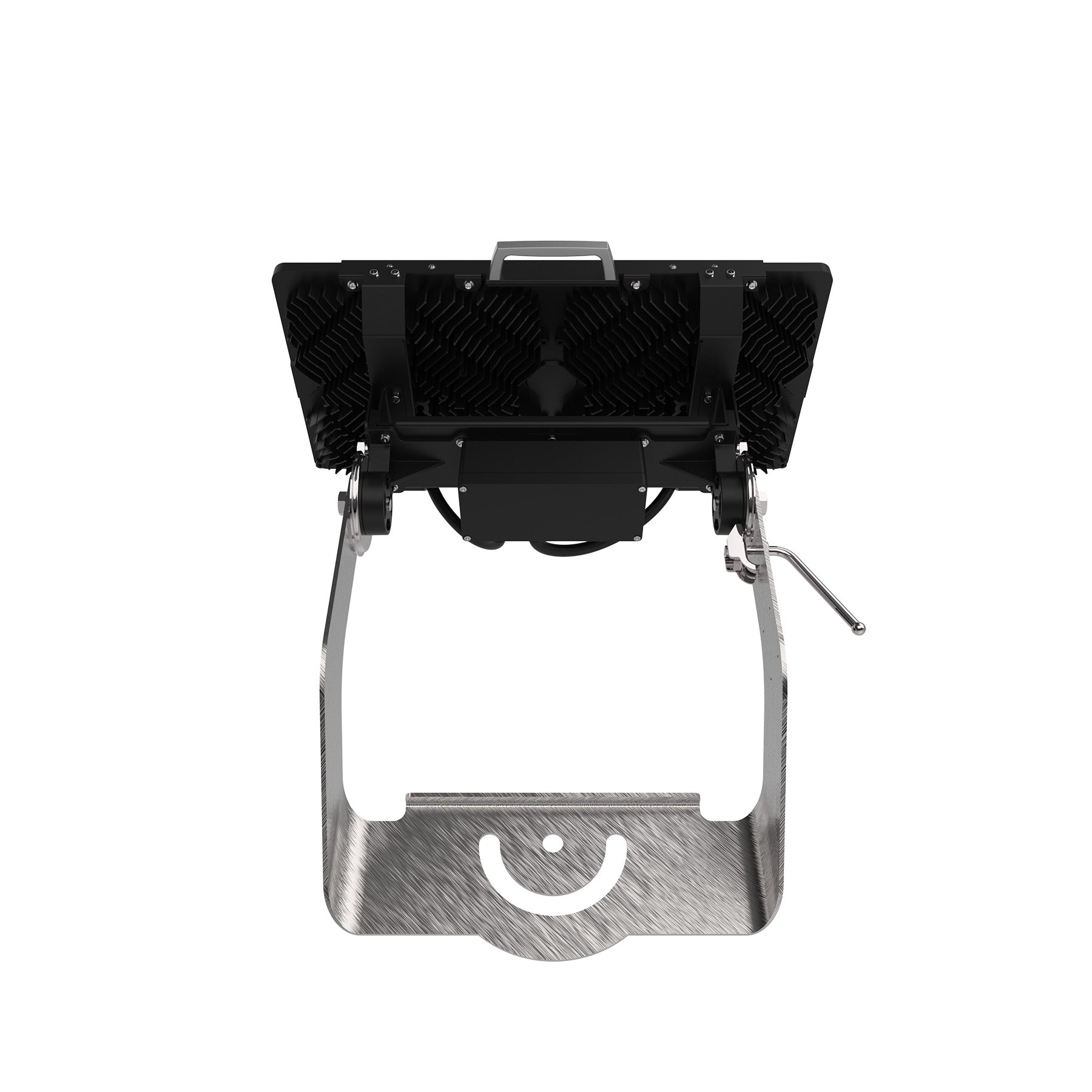

HMX 400W LED High Mast Light, 60°, 5000K, IP66, 56,000lm
HMX 400W LED High Mast Light, 60°, 5000K, IP66, 56,000lm
400W
Luminetic WA Office
45 Solomon Road
Jandakot WA 6164
Australia
We've got three* of these brand-new 400W high mast fittings available ex-stock. It's your chance to grab a deal while stock lasts!
- 400W LED high mast light fitting
- Ideal for lighting up large exterior spaces
- Free shipping Australia-wide
- 5 year warranty

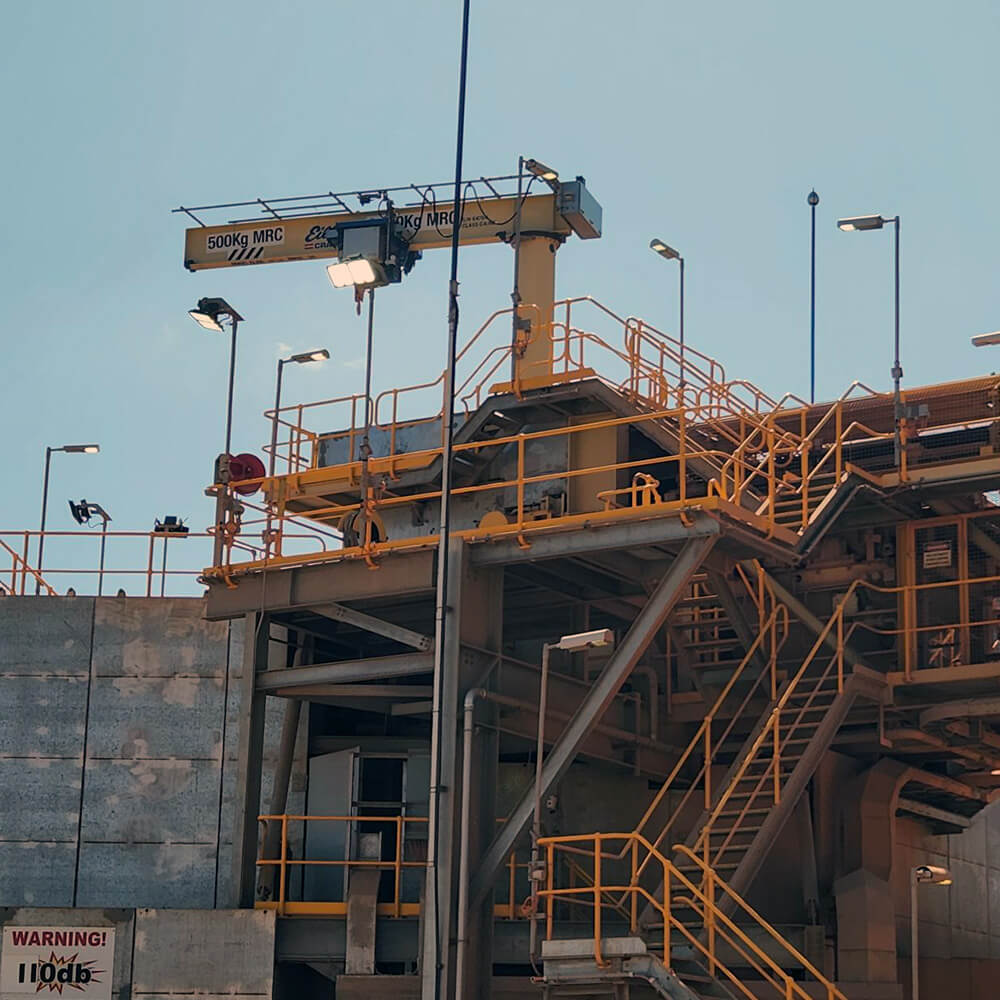

HMX fittings are built to light up large exterior spaces including marine ports, mine sites, truck loading bays, and sporting ovals. They're high efficiency LED panels combined with specialised distribution optics. We've recently used these HMX fittings for a truck loading area and for a local footy oval. Watch Ben break down the key points in the video below.
This 400W high mast light fitting has a:

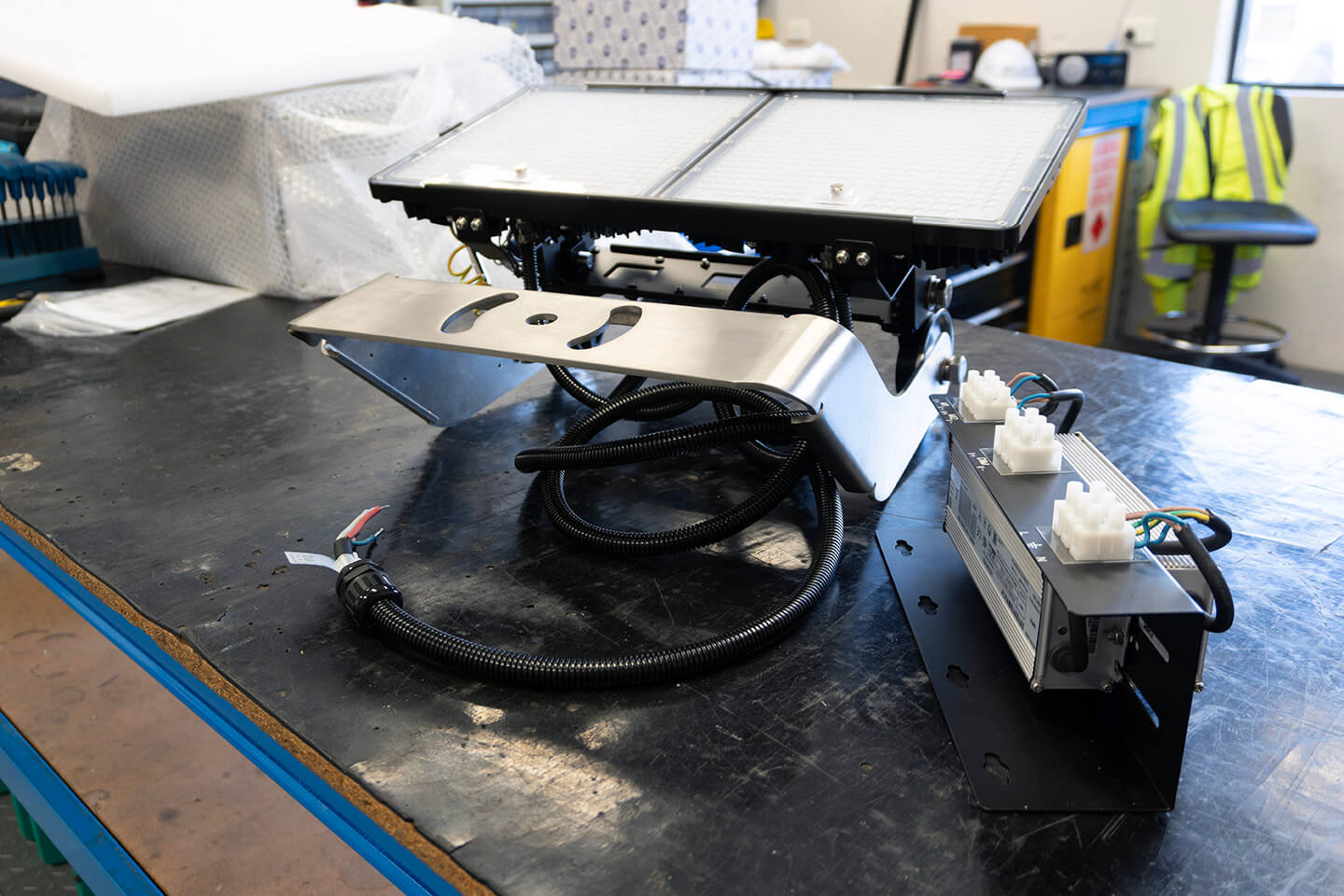

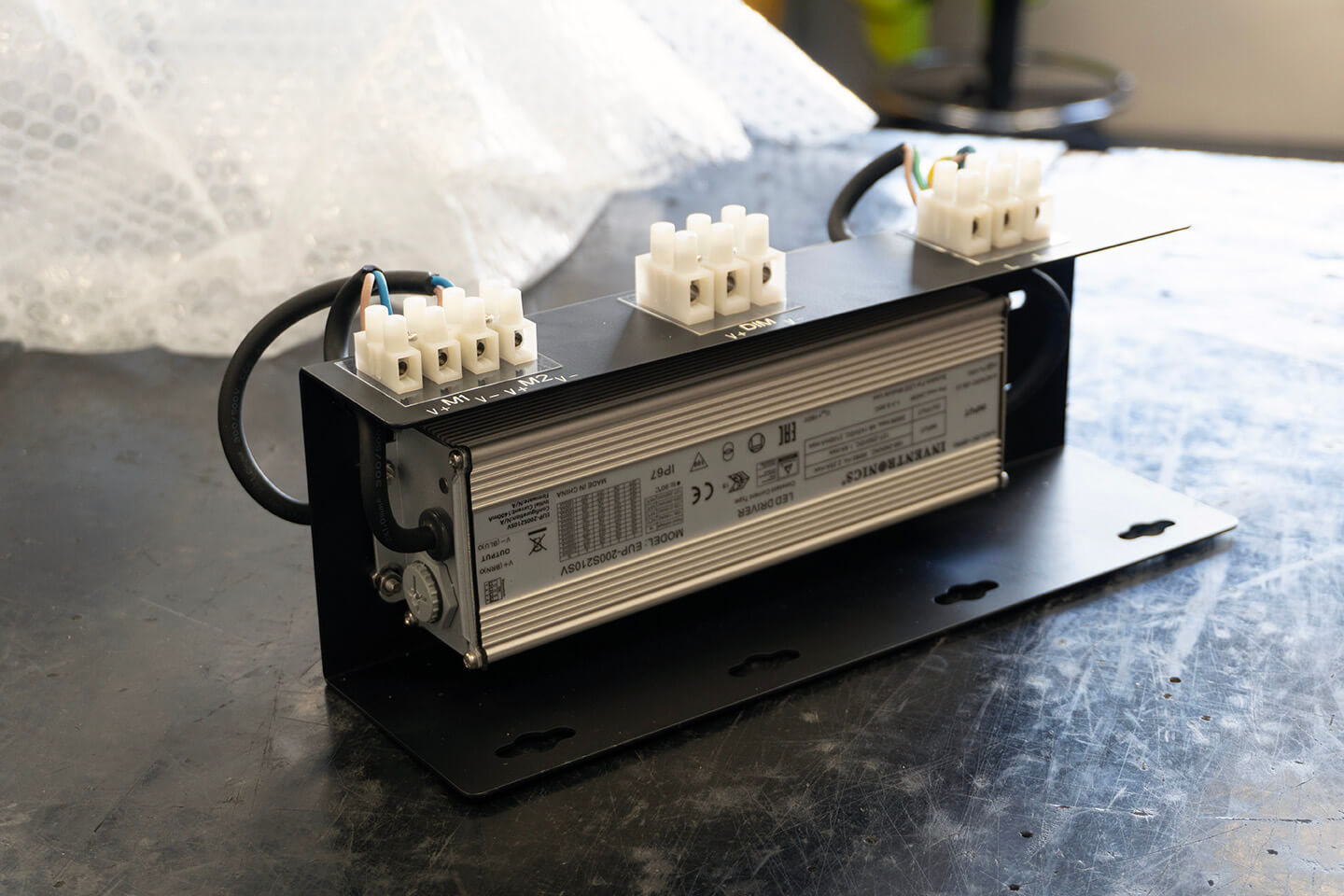

- Separated LED driver (mounted to a powder-coated steel bracket, the LED driver is typically mounted inside the base of a metal pole. This allows easy access for maintenance, and also helps keep the electrical components cool.)
- Symmetrical 60° x 60° beam angle (this is a much more focused beam angle than the standard 120° wide angle of our flood lights, meaning the light is more concentrated)
-
5000K colour temperature (cool white)

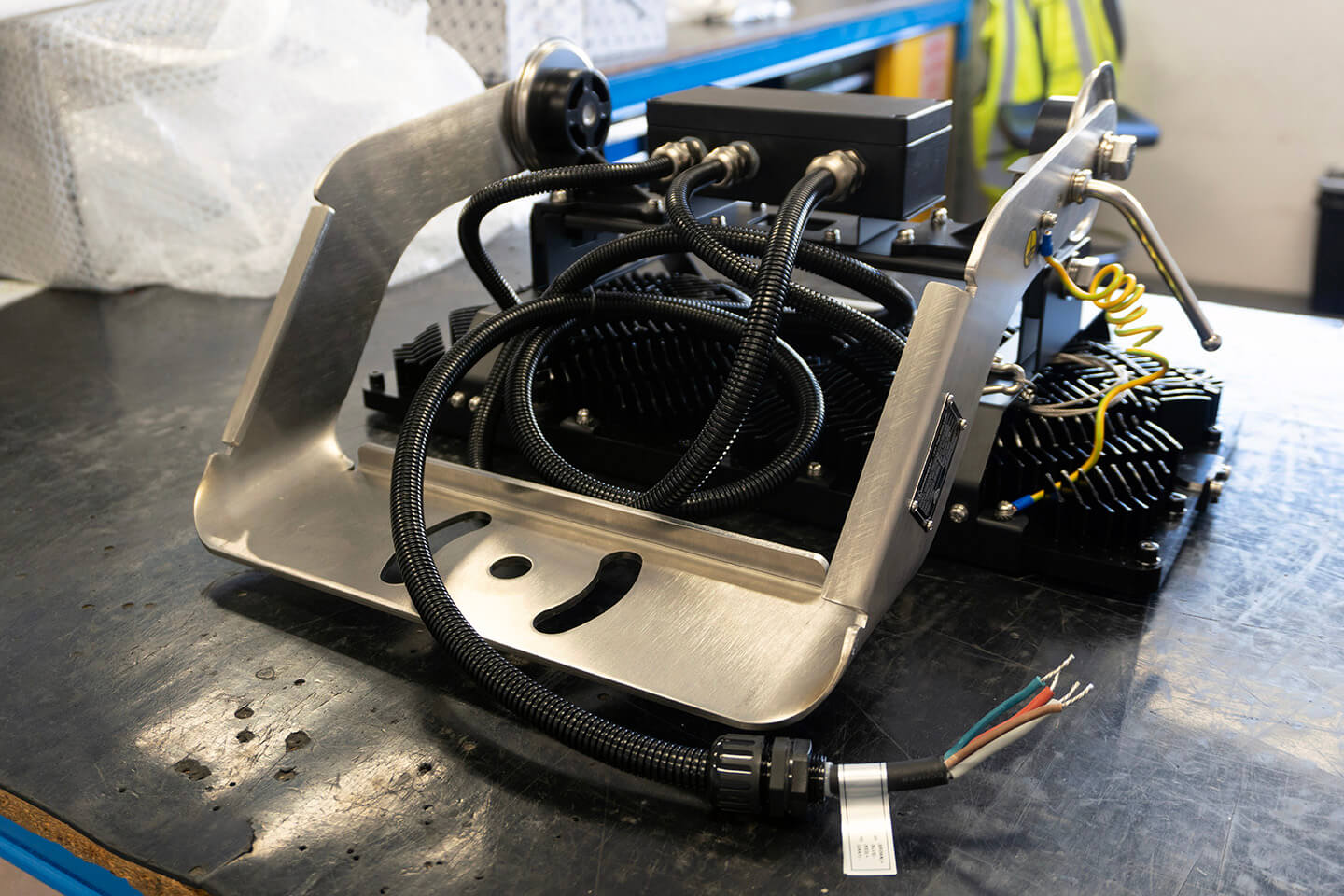

- 2.5m flexible power cable (no plug, can be hard-wired)
- 240V/1P power supply
*We also have one additional unit available ex-stock: HMX-400-60-SS-H-INT-1P-X-2.5. It is identical to this fitting in every regard, except that the LED driver is integrated - mounted on the back of the fitting in a sealed box.
Downloads
- Download HMX 400W LED High Mast Light Fitting Datasheet
- Download HMX 400W LED High Mast Light Fitting Installation Manual
Specifications
| Type: | LED High Mast Light Fitting/ Stadium Flood Light Fitting |
| Wattage: | 400W |
| Lumens: | 56,408lm |
| L70 Rating: | 60,000 hours |
| Beam Angle: | 60° x 60° symmetrical beam angle |
| Colour Temperature: | 5000K |
| Colour Rendering Index (CRI): | 75 |
| Temperature Range: | -40°C to 45°C (with separated driver) |
| Power Factor: | >0.95 |
| Input Voltage: | 100-277VAC |
| Waterproof: | IP66 |
| Impact Resistant: | IK08 |
| Lens Material: | Impact resistant polycarbonate |
|
Body Material: |
AL 1070 Aluminium |
| Cable: | 2.5m flex, no plug |
| Fitting Weight: | 12kg (without driver) |
