HMX 800W LED High Mast Light, 20x60°, 5000K, IP66, 113,000lm
HMX 800W LED High Mast Light, 20x60°, 5000K, IP66, 113,000lm
800W
Luminetic WA Office
45 Solomon Road
Jandakot WA 6164
Australia
We've got just two of these brand-new 800W high mast fittings available ex-stock. It's your chance to grab a deal while stock lasts!
- 800W LED high mast light fitting
- Ideal for lighting up large exterior spaces
- Free shipping Australia-wide
- 5 year warranty

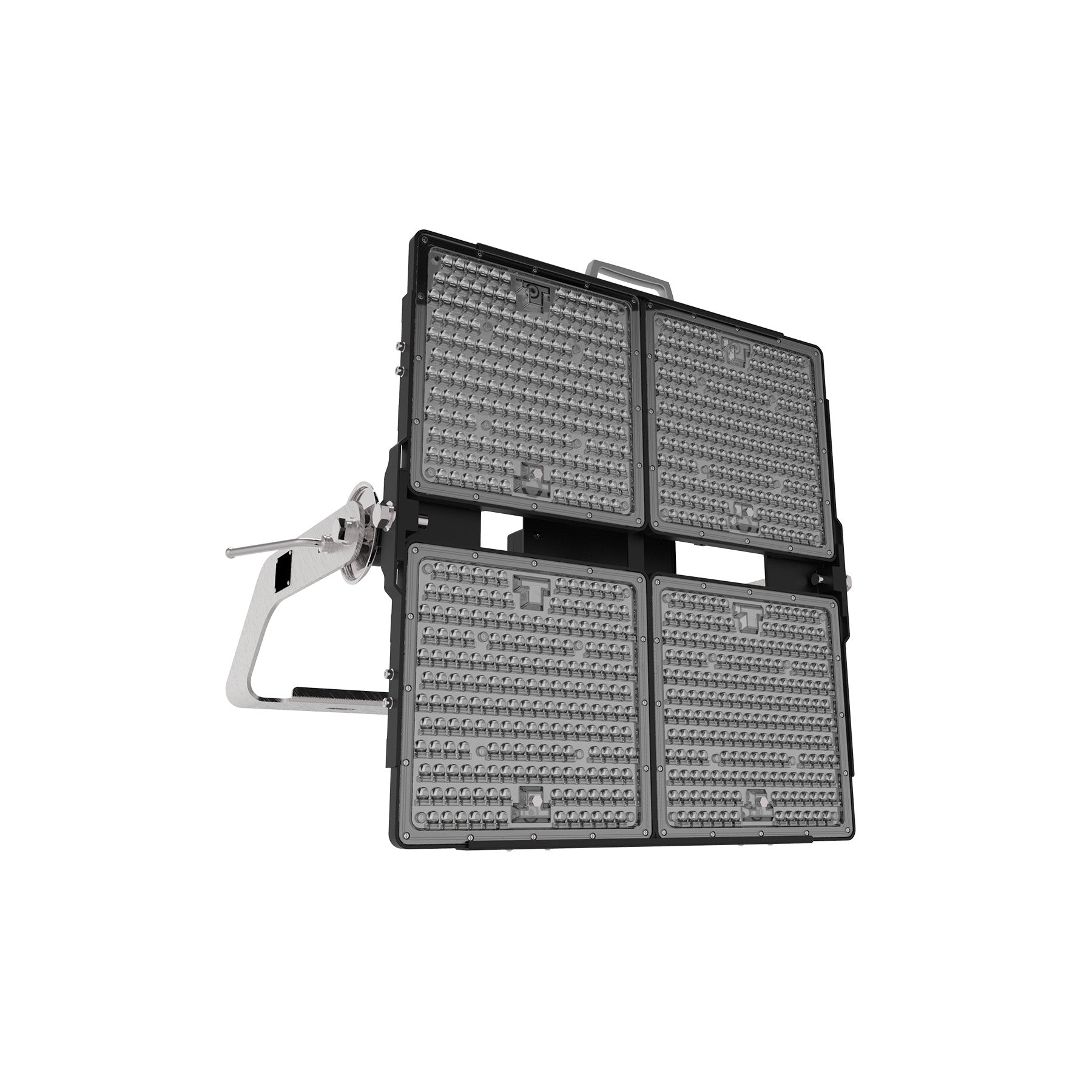

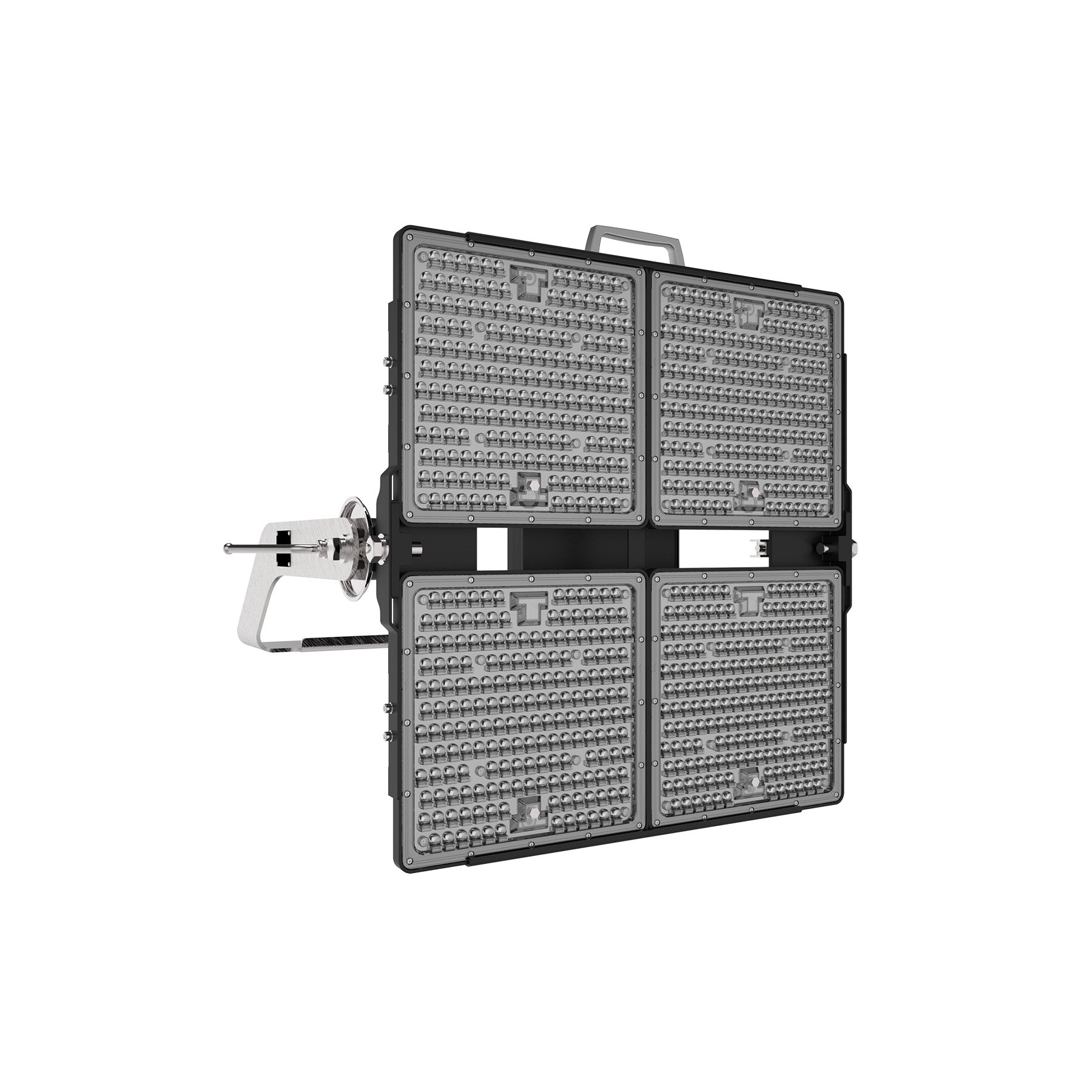

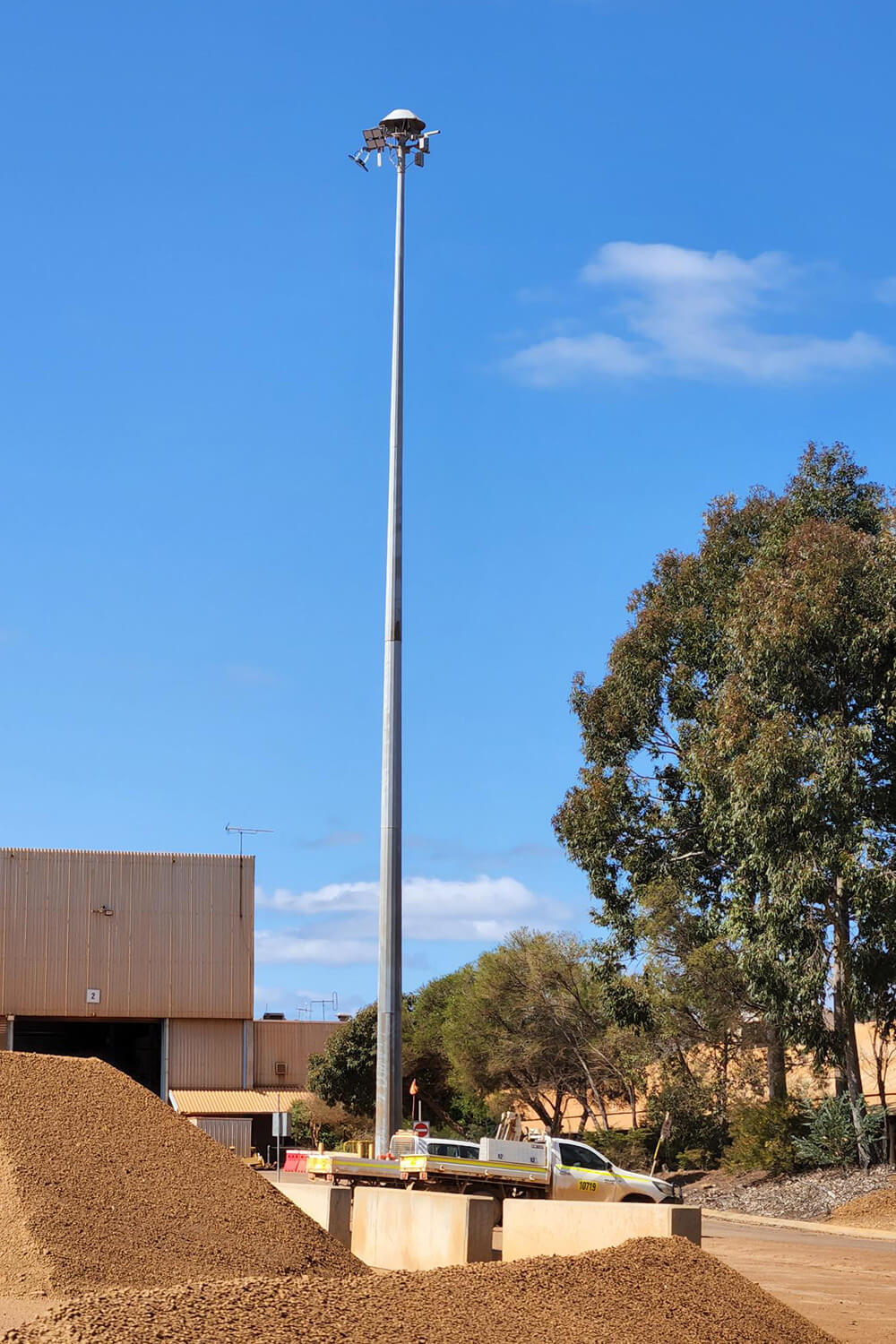

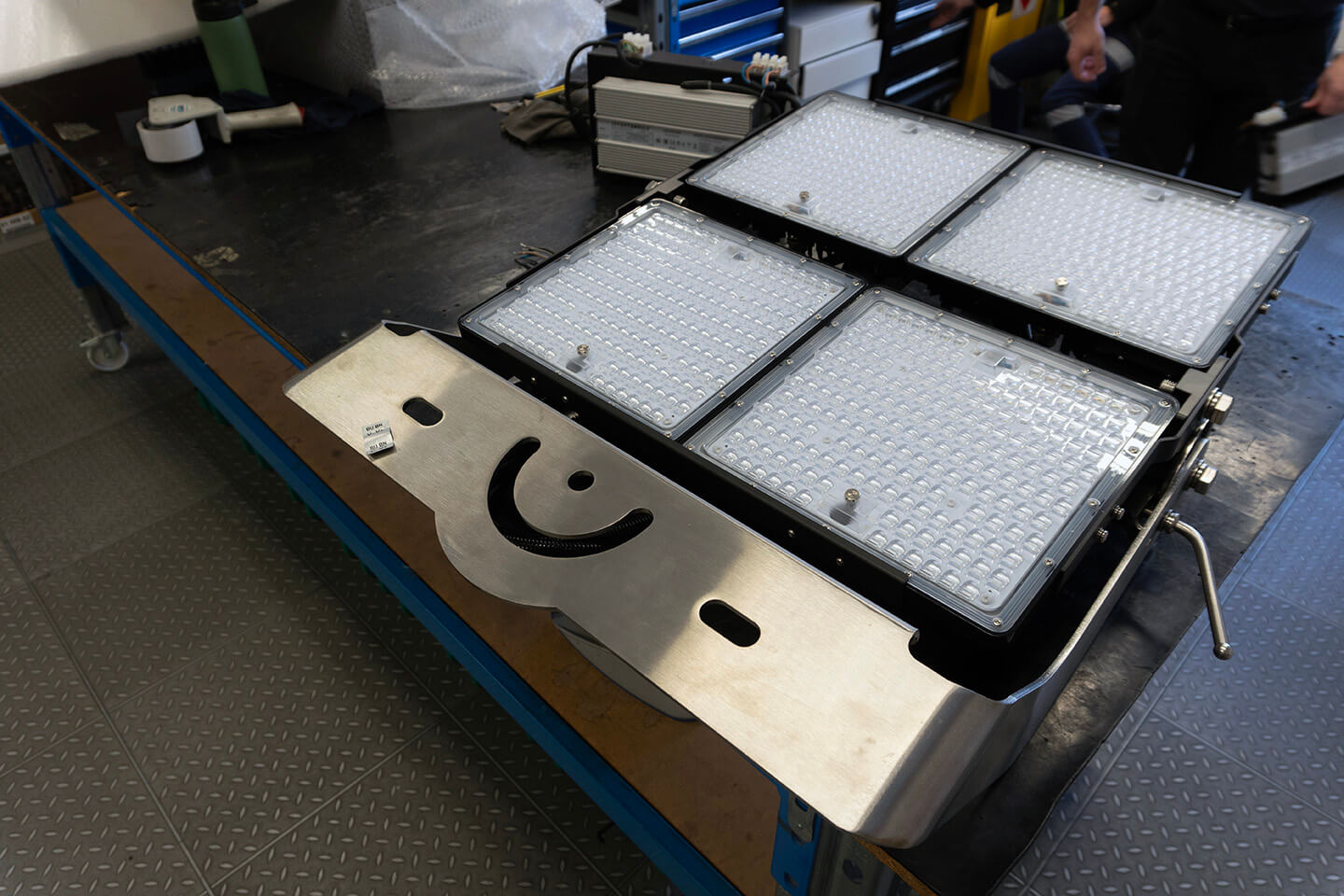

HMX fittings are built to light up large exterior spaces including marine ports, mine sites, truck loading bays, and sporting ovals. They're high efficiency LED panels combined with specialised distribution optics. We've recently used these HMX fittings for a truck loading area and for a local footy oval. Watch Ben break down the key points in the video below.
This 800W high mast light fitting has a:

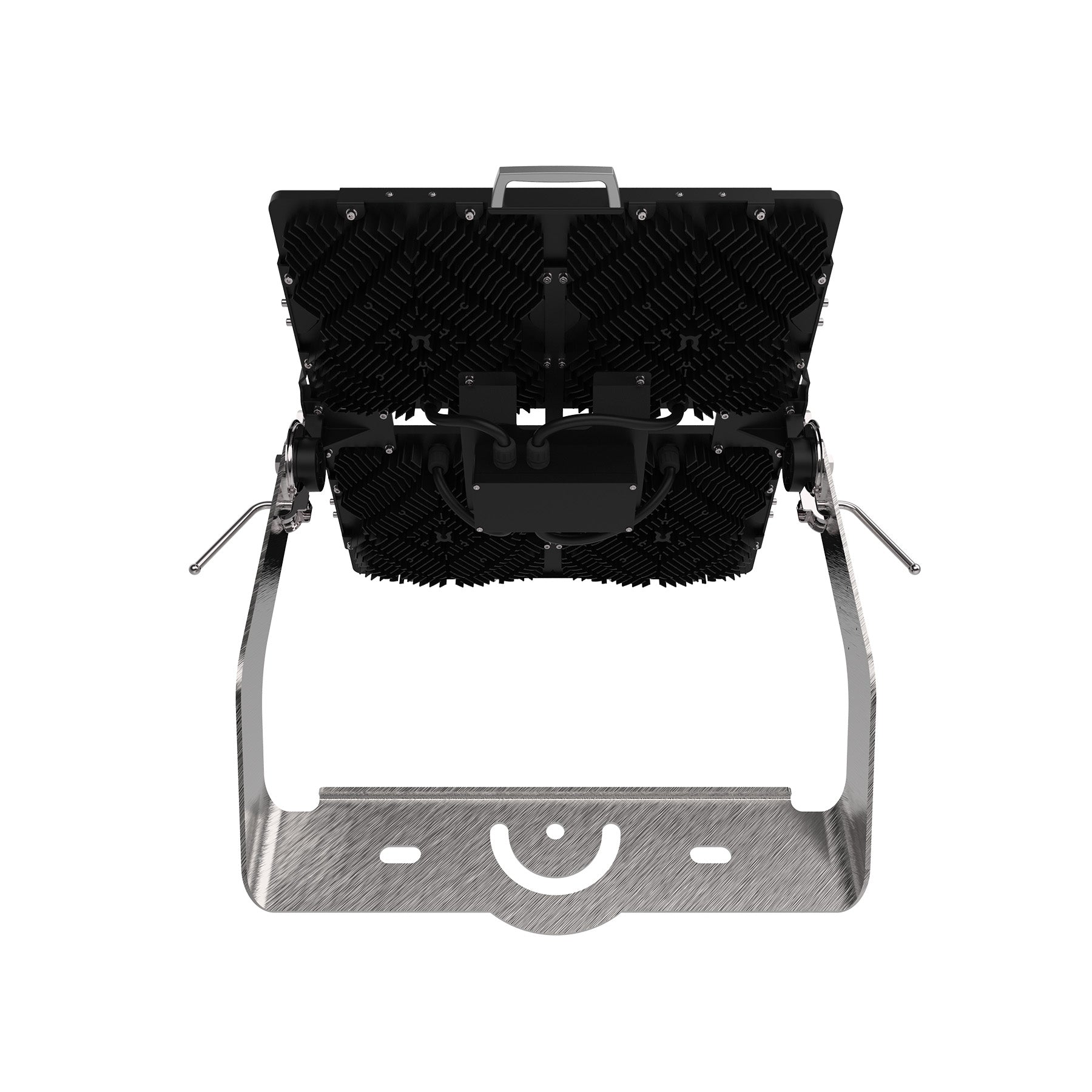

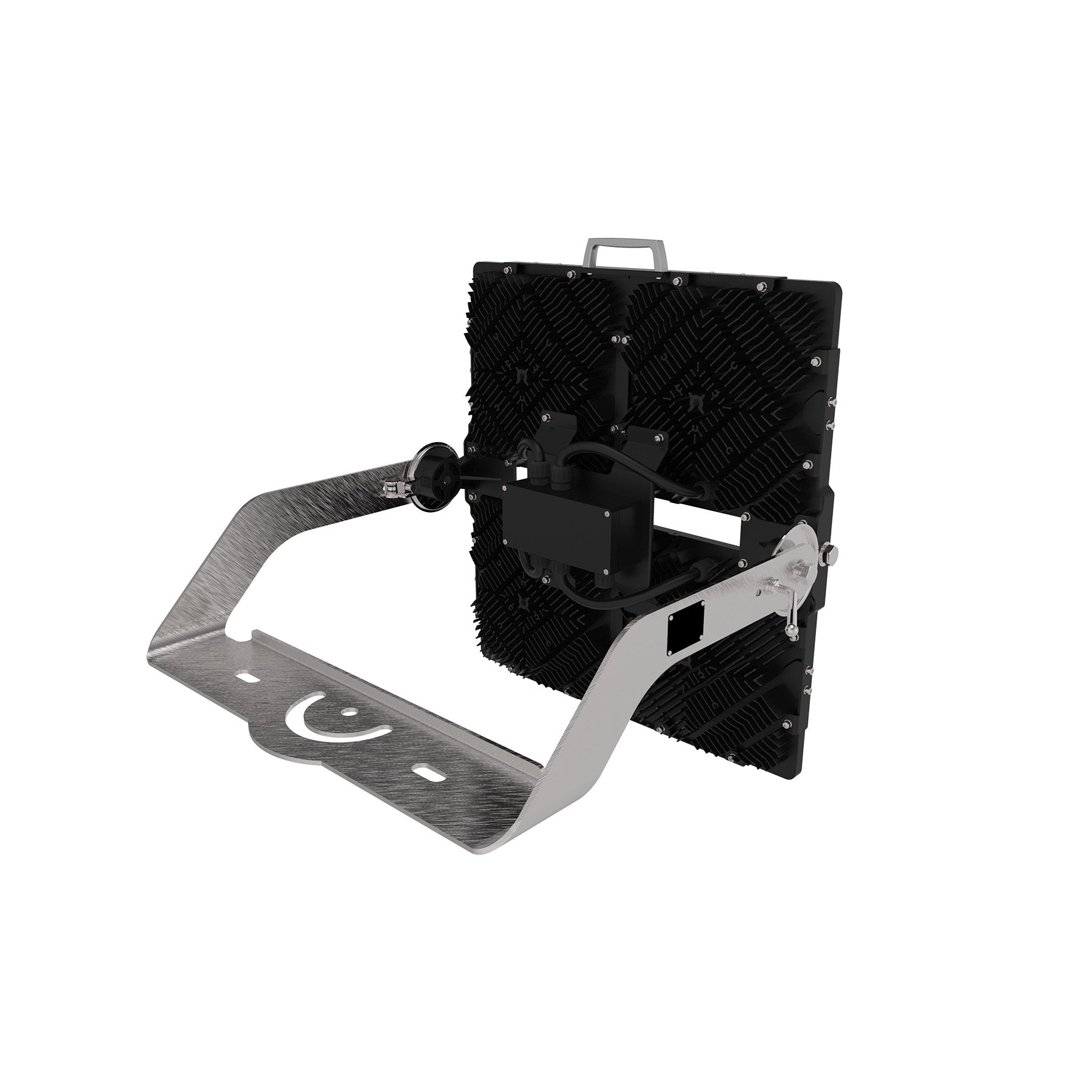

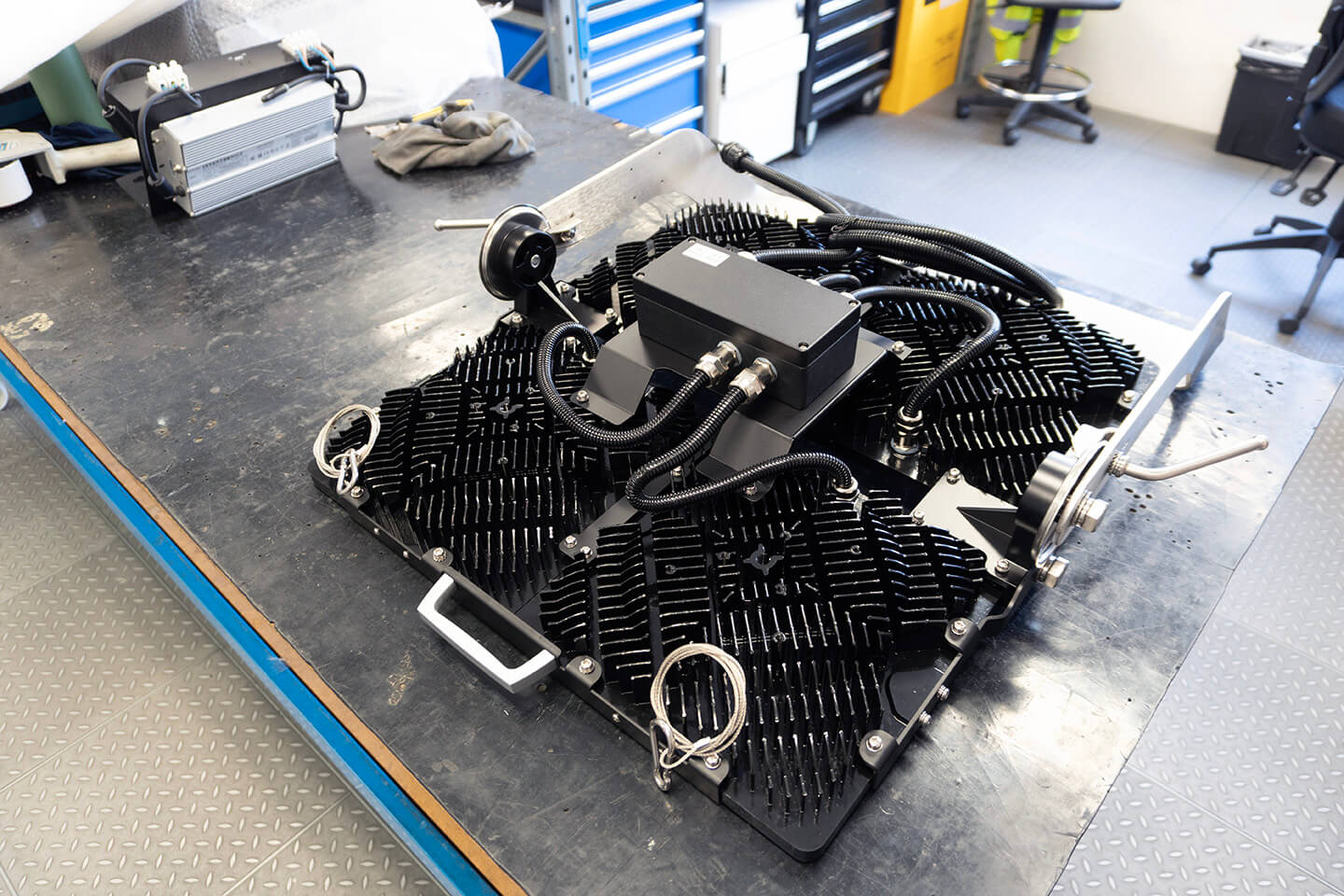

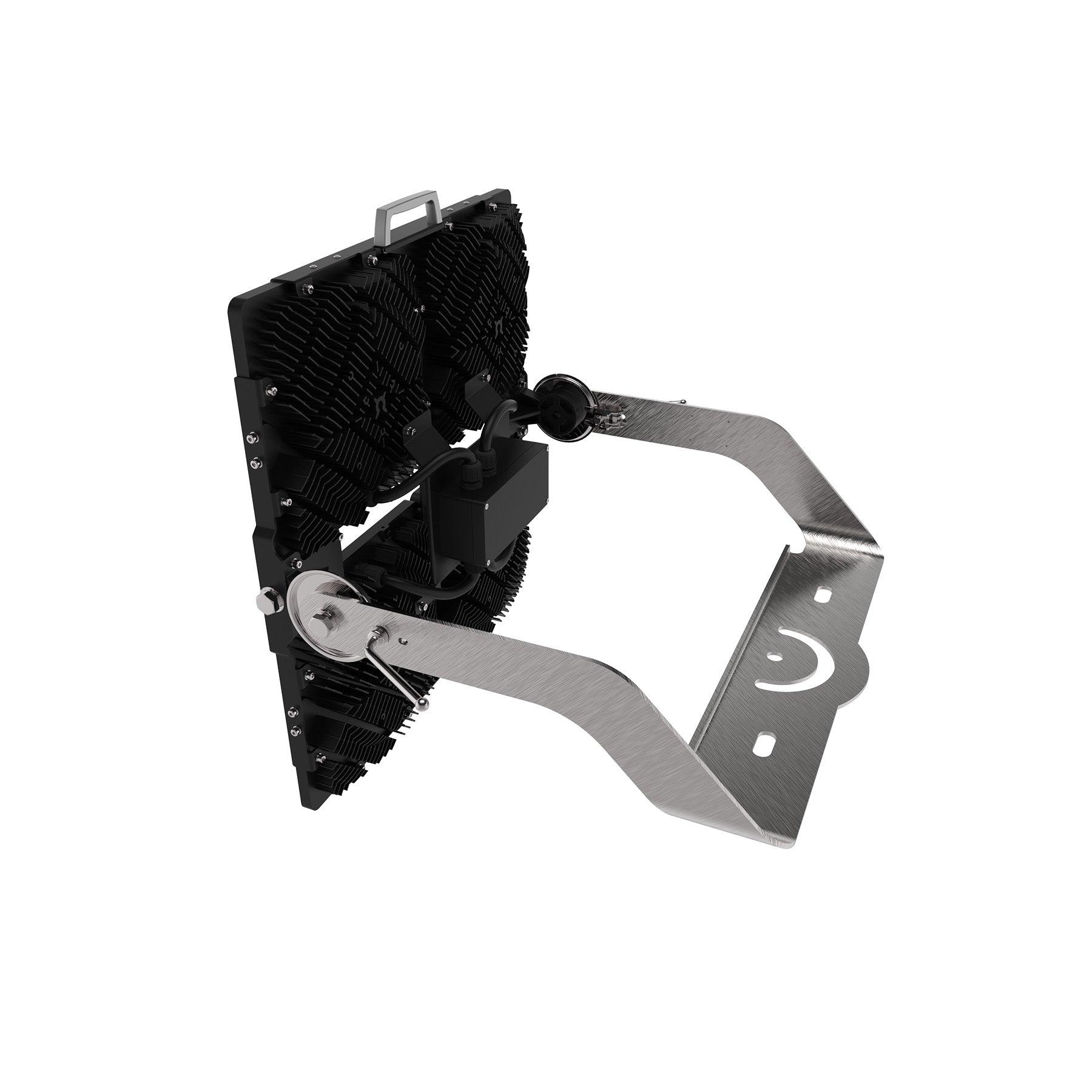

- Separated LED driver (fixed to a powder-coated steel bracket, the LED driver is typically mounted inside the base of the metal light pole. This allows easy access for maintenance, and also helps keep the electrical components cool.)
- Asymmetrical 20° (side) x 60° (forward) beam angle (this is a much more focused beam angle than the standard symmetrical 120° wide angle of our flood lights, meaning the light is more concentrated. It's also an asymmetrical beam angle, meaning it's designed to light a wide, narrow space)
-
5000K colour temperature (cool white)
- 2.5m flexible power cable (no plug, can be hard-wired)
- 240V/1P power supply
Downloads
- Download HMX 800W LED High Mast Light Fitting Datasheet
- Download HMX 800W LED High Mast Light Fitting Installation Manual
Specifications
Type: | LED High Mast Light Fitting/ Stadium Flood Light Fitting |
Wattage: | 800W |
Lumens: | 113,745lm |
L70 Rating: | 60,000 hours |
Beam Angle: | 20° x 60° asymmetrical beam angle |
Colour Temperature: | 5000K |
Colour Rendering Index (CRI): | 75 |
Temperature Range: | -40°C to 45°C (with remote driver) |
Power Factor: | >0.95 |
Input Voltage: | 100-277VAC |
Waterproof: | IP66 |
Impact Resistant: | IK08 |
Lens Material: | Impact resistant polycarbonate |
Body Material: |
AL 1070 Aluminium |
Cable: | 2.5m flex, no plug |
Fitting Weight: | 20.1kg (with remote driver) |
